Labeling Machine Manufacturer

PRO-516 High Speed Wrap Around Labeler


High Speed Wrap Around Labeler

Model Number:PRO-516

PREVNEXT
INQUIRY VIDEO

Back To List

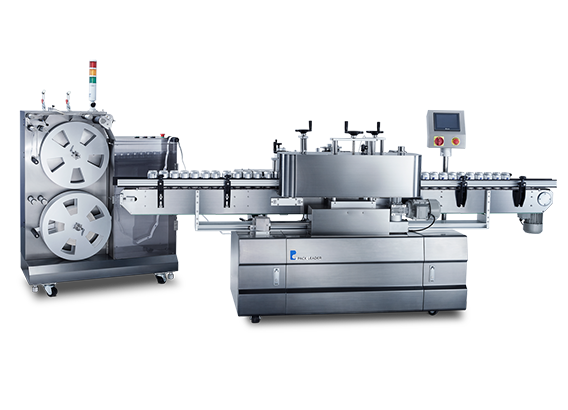

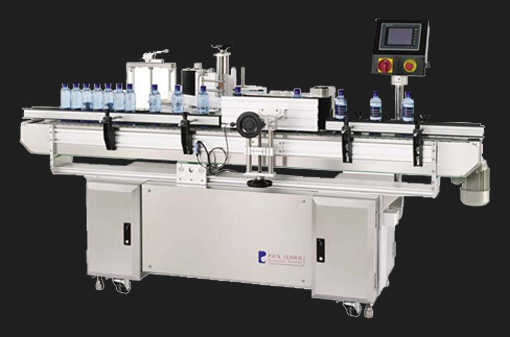

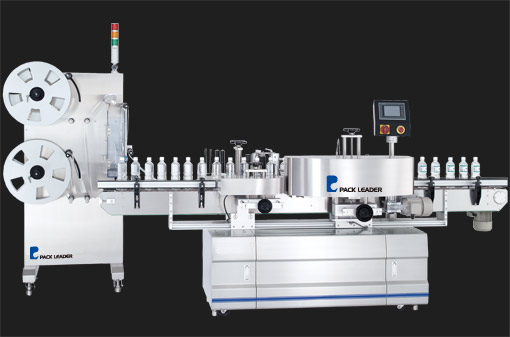

PRO-516 High Speed Wrap Around Labeler

The versatile PRO-516 High Speed Wrap-Around Labeler is armed with the newest and fastest netcon control technology. With just a tap of its one-touch screen, you can easily adjust the various settings for your product needs.

Our servo drivers deliver accurate and high speed repeatable labeling. An easily accessible hand wheel adjuster and side rail quickset adjuster allows more “up-time” on your production line! The PRO-516 is used in virtually all industries such as pharmaceuticals, personal care products, foods, vitamins, cosmetics, and chemicals, where best-in-class reliability is the mandate for producing efficiently.

  • From the people of operation, management, maintenance and the future production lines, Pack Leader labeling systems think more for you and your company.
  • Built in-operation manual: beginners can learn from the display on how to operate the machines within a short time. This saves both money and time during training.
  • Built in-troubleshooting manual: the display would guide the user through troubleshooting.
  • User-friendly label length set up system: simply touching the screen controls allows the user to set label parameters. This unique and innovative system can guarantee that label setting are programmed accurately and applied onto the proper position.
  • Labeling counter-keeps tracks of the quantity of products processed by the machine.
  • Pre-set counter - a quantity can be preset for a production batch and the machine will automatically stop as the amount is attained.
  • Simply touching the screen allows you to delay label application and adjust label position.
  • Voltage 220/110 VAC 50/60 HZ 1 phase
    Power 1760WA
    Controls netcon touch screen
    Conveyor Speed 30m/min max
    Dispensing Speed 90 m/min max
    Applicator Height 200mm(7 7/8") (Customizing Optional)
    Conveyor Width 160mm (6 5/16")
    Spool Diameter 76mm(3")
    Measurement 3000mm (L) x 1200mm(W) x 1450mm(H)
