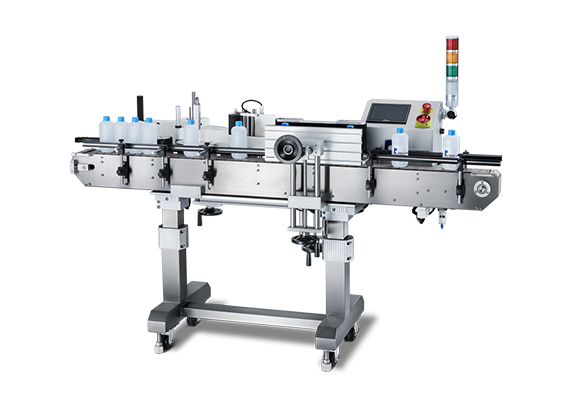

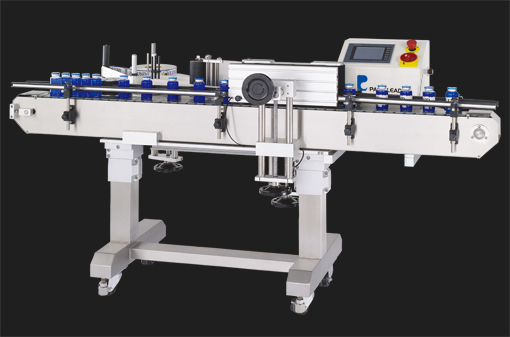

PL-501 Wrap Around Labeling Machine

Modular Design
The labeler structure and all components are standardized and unitized. Parts can be easily adapted with various demands to bring out maximum efficiency.

Personalized Technology Controlling System
Simple and fast operations and controlling combined with superb stability brings out perfection in your labeled products.

The PL-501 utilizes labeling products in the upright position, and applicable to any glass and plastic round containers that can stand upright by themselves. The PL-501 can be used as stand-alone unit or as a part of an integrated production line with filling, capping, and induction sealing machines. Other devices such as a printer and a turn-table for feeding and collecting are also available, increasing its functionality.

Designed with a DIY mindset, with a personalized technology controlling system, an adjustable hand wheel and operator friendly accessories, flexibility in product choices, this rigid stainless steel machine provides high stability while being simple to maintain and operate makes it your perfect production partner and your best choice in long term investments!

Machine Structure

  • Simple Mechanism Adjustment
    Fine or coarse adjustments are easily made accordingly via the hand wheel mechanism to suit the customers various product size and labeling positions.
  • Customization
    Structure adjustment, design modification, and function expansion of the machine are provided depending on customer needs.
  • Quality & Beauty
    In strict compliance with Good Manufacturing Practices (GMP) standards, the PL-211 is made of 304 stainless steel and anodized aluminum, and carefully treated to guard against the effects of harsher environments. The top chain is made of FRP chain material, along with the UPE guide rail on the conveyor system maximizes durability, protection and appearances.
    This durability translates into a solid choice for labeling machine longevity.
  • Rigid Machine Base
    The double foot stands are made with stainless steel. They are steady and compact, preventing the machine from shaking while in operation.
  • Flexible Mobility
    The mobility castor and stainless steel fixing nut are designed to boost flexibility and allow the machinery to support another production line. This greatly increases the machines value as an investment.
  • Operation & Functions

  • Easy Operation
    Utilizes PLC based control panel in the form of an advanced touch screen. The controls are easy to learn and simple to operate.
  • 30 Lots Cross Memory Module
    The cross memory modules records the best labeling setting methods, boosting productivity and speeds up changeover process, which will also allow new personnel to condition quickly.
  • Eight Synchronized Speeds Selection
    Dispensing and conveyor speed selections are synchronized for the most precise labeling effect.
  • Labeling Delay Function
    The labeling delay function is ideal for small scale adjustments and will calculate dispensing speed and position. Set up is fast and easy through the touch screen in addition to its clean, precise, and accurate labeling application.
  • In Built Instructions And Trouble Shooting
    The built-in instructions reduce personnel training time by allowing the operators to learn and operate at the same time. It provides flexible time arrangement for personnel to attain the most efficient production in order to obviate the possibility of personnel movement. The built-in troubleshooting assists operators to find prompt solutions to operation problems, helping avoid shutdown costs by finding quick solutions.
  • Set counter for desired length and ideal positioning of label
    Quick set counter for desired length and perfect positioning of label.
  • Missing Label Set
    Prevents product mislabeling to ensure product accuracy during production and to fulfill production QC procedures.
  • Production Counter And Preset Function
    A built-in counter keeps track of the number of products labeled to control production or to be used I batch mode, stopping the machine automatically when target production has been reached.
  • Auto Labeling Start Up Mode
    While the power is on, the labeler will enter labeling condition automatically for the same operation as the previous run with no need for further setup, saving lots of time and increase production efficiency.
  • 15.Strict Quality Control
    Pack Leader products are manufactured under strict ISO 9001 quality control procedures and also strictly tested by the European CE and UL standards, and have met the safety quality regulations perfectly.
  •

    Supply Voltage 220/110 VAC 50/60Hz 1Phase
    Power Consumption 760VA
    Dispensing Speed 40m/min max.
    Conveyor Speed 22m/min max. (customizing optional)
    Applicator Height 150mm / 200mm
    Label Size 150mm x 300mm max.
    Conveyor Width 110mm
    Spool Diameter 76mm
    Dimension 2000mm (L) x 1120mm(W) x 1050mm(H)

    ---Specifications are subject to change without prior notice----
