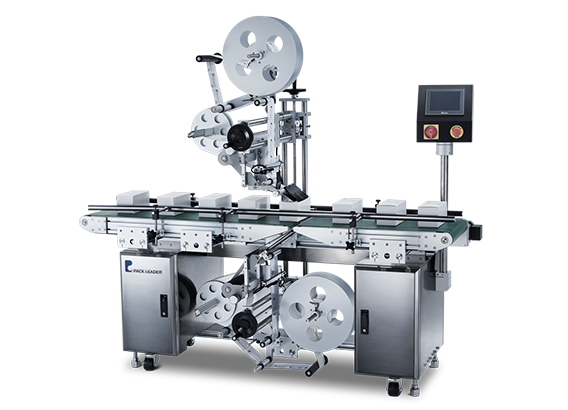

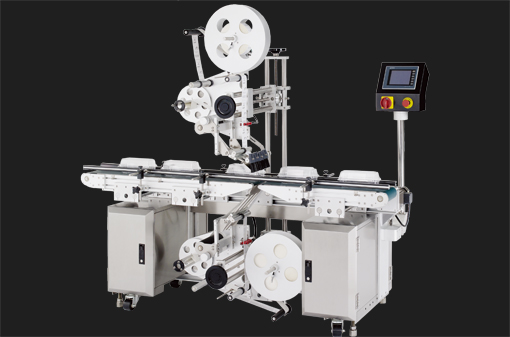

PRO-225 Top & Bottom Labeling Machine

Durable Structure With Durability and Accuracy
PRO-225 Top & Bottom Automatic Labeling Machine is the most suitable product for high accuracy top and bottom labeling application. Made from high quality anodized aluminum alloy, this labeler has outstanding stability and performance, becoming your best labeling companion.

Firm And Exact Data Transfer
The mechanisms of the labeler are controlled by an advanced high speed communication interface to ensure the data transfer is stable and accurate. It allows the control diagram to be straight forward and steady, which will guarantee the machine's continuous output.

Convenient Adjustment and Steady Production Equipment
The PRO-225 Top & Bottom Automatic Labeling Machine is equipped with convenient adjusting abilities for different product specifications, including labeling position and parameters requirements for production. This guarantees your production output and the most ideal product appearance.

Frame Assembly

  • Made from S304 stainless steel and hardened anodized aluminum, maintenance of the labeler is easy and efficient.
  • Control Interface

  • Control system of labeler utilizes a large touch screen panel, certified by CE and UL regulations for efficient and effective monitoring of the labeling process.
  • Control box and external connection of labeler pass CE and UL safety regulations with IP65 level to ensure control system longevity and stability.
  • Applicator Assembly

  • Labeling process controlled by Panasonic micro process controller PLC, ensuring a fast and steady performance.
  • Label dispensing is driven by stepper motor to ensure labeling accuracy, efficiency, and speed while being low on energy consumption. (For high speed demands, the servo motor can be selected)
  • Utilizes famous branded fiber optics and infrared sensors for precise detection and signal triggering without interference.
  • Standard label applicator width both 180mm and 250ml optional. Applicator is ready for future hot foil printer assembly attachment.
  • The labeler is easily adjustable with the included hand wheel assembly. It is efficient and effective for various label positioning, maximizing production output.
  • Labeler Component Advantages

  • Maintenance is easy and efficient.
  • Delicate VFD controller ensure speed stability and +/-0.5% inaccuracy rate.
  • Guide rail portion is made with high quality aluminum covered with hard-wearing industrial plastic to ensure accurate labeling and product protection, keeping the customer’s product attractive and in perfect condition.
  • Labeler base is made of stainless steel to ensure full anti-rusting. This design ensures the machine and production space hygiene are maintained which is normally neglected by other manufacturers.
  • Wheels keep the machine portable, convenient when shifting to different production lines. This supportive mobile strength increases the value of your investment.
  • Supply Voltage 220/110 VAC 50/60Hz 1Phase
    Power Consumption 880VA
    Dispensing Speed 40m/min max.
    Conveyor Speed 40m/min max.
    Applicator Height 170mm / 200mm
    Label Size 170mm x 300mm max.
    Conveyor Width 160mm
    Spool Diameter 76mm
    Dimension 1835mm (L) x 800mm(W) x 1360mm(H)

    ---Specifications are subject to change without prior notice----
