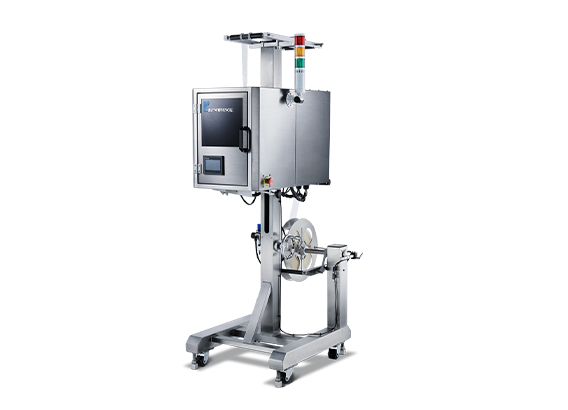

Stand Alone Sleeve Labeler(neck sleeve) SL-77

Our shrink sleeve labeling machines series uses the latest shrink technology with the added large touch screen controls. The mainframe height can be adjusted automatically through the user friendly controls. Designed for durability, these machines will remain stable and operational even after long-term usage.

  • Made with 304 stainless steel and hardened anodized aluminum for maximum stability and elegance.
  • Utilizes micro stepper motor, giving an efficient and accurate sleeve process.
  • Height is adjustable with user-friendly controls.
  • Changeover is easy and quick.
  • Touch screen for operating, monitoring, and detecting.
  • PLC control circuit system and pneumatic cutoff system.
Model SL-77
Material SS # 304, Aluminum
Voltage 220VAC, 50/60HZ, 1Phase
Power Main Power 1KW Max
Speed 100bpm (Base on 40mm film length)
Bottle Diameter Ψ30mm~90mm
Bottle Shape Round, Square, Oval, Curves, etc.
Bottle Material Glass, Metal, Plastic
Film Material PVC, PET, OPS
Film Thickness 0.035mm~0.08mm
Film Roll Inner Core 5”~10”
Film Length 22mm~180mm
Bottle Height 35~180mm
Dimensions 700 mm(W) x 1000 mm(D) x 2000 mm(H)
Net Weight Approx. 150 kgs

Main Structure

  • Spring type film feeder
  • Feeder motor
  • Pneumatic knife plate
  • Control system
  • Pneumatic film shooter
