FL-800 & SU-101 Filling/Inserting/Capping Monobloc Machine & Unscrambler

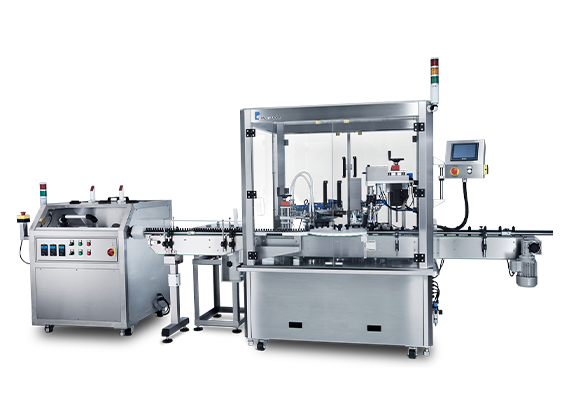

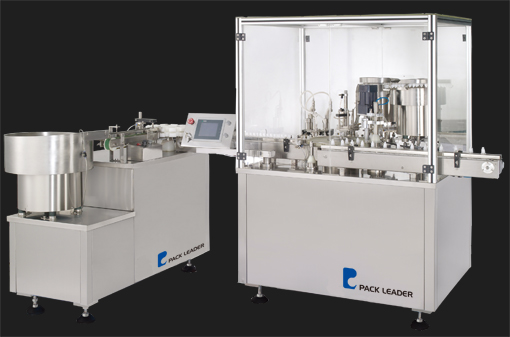

FL-800 Filling-Plugging-Sealing Compact Machine with Unscrambler

Model Number:FL-800 & SU-101

PREVNEXT
INQUIRY VIDEO

Back To List

The Pack Leader FL-800 filling/inserting/capping monobloc machine with unscrambler is suitable for liquids from low to medium viscosity, with accurate peristaltic and piston pumps filling performance. This machine is designed with double pumps/nozzles to boost production speed.

Advantage of its double pumps/nozzles enable machine to achieve cost effective
production and high performance. User-friendly design allows operators to have an easy time to operate and low maintenance. Flexible design allows customers to choose between 2 or 4 pumps/nozzles to be applied on the machine.

Nib and Caps feed by vibrating bowls, and capping mechanism uses Permanent Magnet Hysteresis Clutch and Brake which can easily control the torque of capping.

Accurate bottle placing by servo controlled star wheel to ensure the filling/inserting/capping in perfect positioning.

Suitable for E-cigarette liquids, penicillin products, and eye drop products.

  • Integrated digital control with PLC/ Touch-screen controls for easy operation.
  • User friendly operating system with self diagnostics / solution window.
  • High resolution screen for clear view of the control panel.
  • Designed with intelligent detection system to detect fallen, mis-positioned bottles and other error situations.
  • Mechanical buffer design for reduced wear and redundant operation.
  • Variable speed for different production speed.
  • DIY design concept for easy disassembly, repair and maintenance.
  • Aesthetic outline with perimeter gutter for easy clean up.
  • Professional manufacturing techniques using ISO-9001 system.
  • Stainless steel and anodized aluminum construction that complies with GMP standards.
  • Power 2.2 KW
    Voltage AC 220V 60HZ Single Phase
    Filling Capacity 5-50 ml
    Filling Nozzles 2 or 4
    Filling Accuracy ±1%
    Filling Pump Option Peristaltic / Piston
    Production Speed 50 BPM maximum
    Air Pressure 4-6 kg
    Dimension

    FL-800:(L)3100mm x (W)2000mm x (H)1900mm
    FL-800&SU-101:(L)4175mm x (W)2125mm x(H)1900mm

    Weight 1500 KG

    Material of parts contacting liquid is 316L stainless steel and silicone rubber, in conformity with GMP standard.
