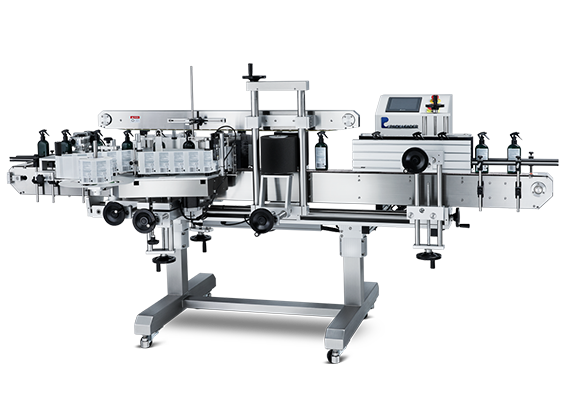

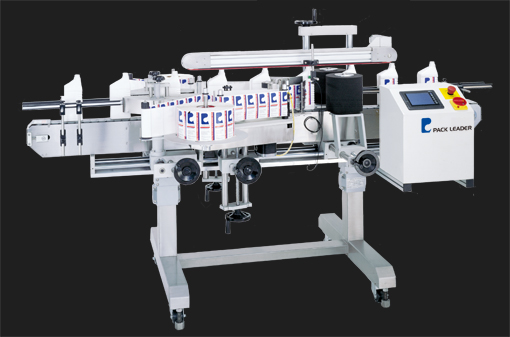

PL-622 Two Sides Labeling Machine

Additional Value Of Production Efficiency

PL-622 front and back automatic labeling machine used a touch screen control system for easy setting, high speed, high stability & accurate labeling to be distinguished by its excellent production efficiency in combination with low investment costs, outstanding product characteristics and higher industry competitive capability.

Excellent Flexible Mobility Quality

Regardless of stand alone unit or as part of an integrated production line, PL-622 front and back automatic labeling machine would provide best arrangements on machines.

Simple tool-free adjustments for the guide rail, side pressure guidance units, applicator of PL-622 front and back automatic labeling machine allow you to accommodate different shapes of products and the hand wheels make it easy to adjust. In varies production line, Regardless of stand alone unit or as part of an integrated production line, it would provide best arrangements on machines to bring the maximum efficiency and flexible mobility. PL-622 front and back automatic labeling machine used a touch screen control system for easy setting, high speed, high stability & accurate labeling. This labeler is distinguished by its excellent production efficiency in combination with low investment costs, outstanding product characteristics, and higher industry competitive capability.

The conveyer front section has equipped a side pressure device that can guide the bottle straightforward and separate bottles into equal distance in order to conveying smoothly and label accurately. Castors and threaded leveling feet are installed on the chassis for greater mobility to bring out great benefit. Besides, this labeler could be equipped with printer and turn table of feeding and collection for option.

PL-622 front and back automatic labeling machine is an essential manufacturing partner. Its extra value of production efficiency and quality is excellent that no one could replace it.

Machine Structure

  • Precise Labeling Steady Controlling
    Motivated by Micro Stepping motor and controlled by Microprocessor system are enable to efficiently achieve ultimate accuracy. Also, conveyor, side pressure and top pressure all use a same power to maintain stable labeling.
  • Modular Design
    It is for modular design of the labeler structure and all components are standardized and unitized. Parts can be easily adapted with various demands and bring out the best efficiency.
  • Flexible Mobility
    The mobility castor and stainless steel fixing nut are designed to flexibly move the machinery to support another production line. Therefore, it would boost the invest benefits.
  • Quality & Beauty
    The main structure is manufactured from S304 stainless steel with anodized process and high quality aluminum. It is complied with GMP standard that provides easy maintenance and for a long durable life. Top chain made by FRP chain material and hard-wearing UPE guide rail applied for the conveyer system is designed to be the product appearance protected and efficient performance. It also increases with years of reliable long term use. Top chain made by FRP chain material and hard-wearing UPE guide rail applied for the conveyer system is designed to be the product appearance protected and efficient performance. It also increases with years of reliable long term use.
  • 5.Simple Adjustment For Labeling Applicator
    It provides a little or big wide adjustment by equipped with hand wheel mechanism for easy adjustment of applicator.
  • Rigid Machine Base
    Double square foot stands was made from stainless steel. It is steady and does not take a lot of room. When labeler working, it would not quake and affect the labeling action.
  • Machine Device Features

    7.Side Pressure Device
    In-feed product alignment system maintains consistent product position and separating bottles into equal distance.
  • Top Pressure Device
    Simultaneous top pressure is applied to carry the products and confirm the body of bottles that it is stable.
  • Pressure Roller Device
    By specially selected sponge to let the label close stick on the bottles without any deformation by over pressing.
  • Operation & Functions

  • Easy Operation
    PLC based on Personalize control panel with large and advanced touch screen. Easy learning controlling panel is for simple operation with common sense.
  • In Built Instructions And Trouble Shooting
    In-built instruction is provided for learning from the panel’s instructions. It would reduce the personnel training time by training and operating at the same time. It could provide flexible arrangement for personnel to attain the most efficient production to obviate the possibility of personnel movement. And in built trouble shooting is to assist operators to provide a prompt solution for operation problem and quickly reverted to avoid any shutdown cost.
  • 30 Lots Cross Memory Module
    Record the best labeling setting method for the best productivity. It is convenience for each production line of multiple products. Even for different person, it would also get into condition quickly.
  • Smart Label Length Setting Function
    Quick set counter for desired length and perfect positioning of label.
  • Missing Label Set
    Prevent product miss-labeled to ensure product accuracy while production and fulfill production QC procedure.
  • Production Preset Function
    A built-in counter can either run freely keeping track of the number of products labeled to control the production or can be used in batch mode where the labeler automatically stops when the desired numbers of products have been labeled for efficient production management.
  • Auto Labeling Start Up Mode
    While the power been switch on, the machine will enter labeling condition automatically for the same production as previous run and no need for further setting, this mode can tremendously save operator’s setting time and increase the production efficiency
  • Eight Synchronized Speeds Selection
    Enable dispensing speed and conveyer speed fully synchronized for the most precise labeling effect.
  • Labeling Delay Function
    It is Ideal for small scale adjustment and could do Calculate digitally for dispensing speed and position. It offers quick and easy set up through its advanced touch screen control in addition to its clean, precise and accurate labeling applications.
  • Strict Quality Control
    Pack Leader products are manufactured under strict ISO 9001 quality control procedure and also strictly tested by the European CE standard and UL perfectly meet safety quality regulations.
  • Supply Voltage 220/110 VAC 50/60Hz 1Phase
    Power Consumption 900VA
    Dispensing Speed 30m/min max.
    Conveyor Speed 30m/min max.
    Applicator Height 150mm / 200mm
    Label Size 150mm x 300mm max.
    Conveyor Width 110mm
    Spool Diameter 76mm
    Dimension 2400mm (L) x 1500mm(W) x 1400mm(H)

    ---Specifications are subject to change without prior notice----
